Product
Di-soric
212738
M5-A
Request a Quote
Image copyright: Di-soric

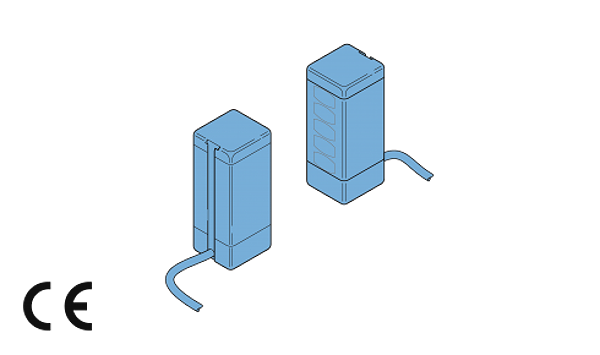

Di-soric 212738
M5-A
Muting sensor
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Muting sensor for palletizers. Detection of irregular loads and pallets. 5 Beams. Beam coding
Downloads
Technical parameters
| Mounting: | T-shaped slot (Backside) |
| Operating principle: | Through beam sensor |
| Size: | 70 x 28 x 30 mm (Dimensions) |
| Design: | cuboid design |
| Light beam interspace: | 10 mm |
| Number of beams: | 5 |
| Characteristics: | Beam coding A |
| Service voltage: | 19,2 ... 28,8 V DC |
| Switching output: | pnp, 100 mA, NO |
| Display: | LED for output status |
| Reaction time: | 100 ms |
| Ambient temperature, operation: | -30 … +55 °C |
| Protection class: | IP 65 |
| Connection: | Cable, 0,9 m, with connector, M12, 5-poled |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 10.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
