Product
Di-soric
207842
DCCR 80 K 50 PSOL-KL
Request a Quote

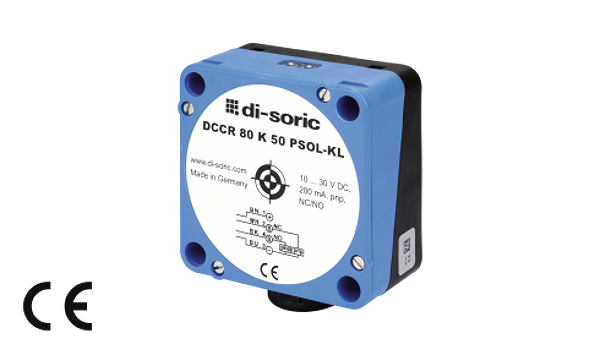

Image copyright: Di-soric
Di-soric 207842
DCCR 80 K 50 PSOL-KL
Inductive Proximity Switch
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Connection clamps. Protection against short-circuit and reverse polarity. LED indicatior for output state. High protection class IP 67
Downloads
Technical parameters
| Operating principle: | Inductive |
| Evaluation: | digital |
| Size: | 80 x 80 x 40 mm (Dimensions) |
| Design: | cuboid design |
| Mounting: | non-flush |
| Operating distance: | 50 mm |
| Standardized measuring plate: | 150 x 150 x 1 mm |
| Service voltage: | 10 ... 30 V DC |
| No-load current: | < 10 mA |
| Switching output: | pnp, 200 mA, NO/NC, exclusive OR |
| Switching hysteresis: | < 15 % |
| LED indicator: | yes |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Voltage drop: | < 2,4 V |
| Switching frequency: | 100 Hz |
| Ambient temperature, operation: | -25 … +70 °C |
| Insulation voltage endurance: | 500 V |
| Protection class: | IP 67 |
| Casing material: | plastics (polycarbonate - PC) |
| Connection: | Connection compartment, for 4 x 1.5 mm² |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.50 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
