206304

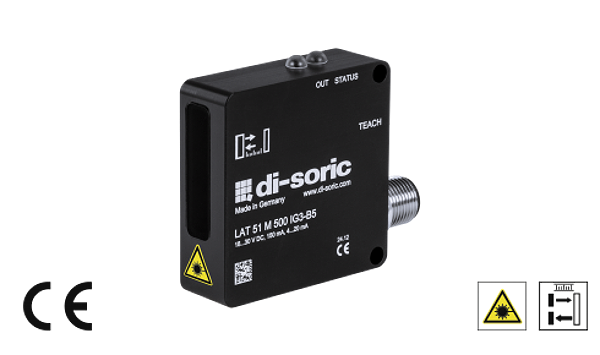

LAT51M500IG3-B5
Laser Distance Sensor
Precisely linearized object detection. Digital and analog output. Remote teach function. Key-lock function via remote teach. Red light laser, with small laser spot. Robust metal casing
Emitted light: | Red light laser, 650 nm |
Laser class: | 1 (IEC 60825-1) |
Service voltage: | 18 ... 30 V DC |
No-load current: | 60 mA, (24 V DC) |
Light spot size: | Ø 2 mm |
Detection range: | 50 ... 500 mm (90% reflectivity) |
Resolution: | 0.05 ... 1.5 mm |
Switching output: | Push pull, 150 mA, NO/NC |
Switching hysteresis: | 0,1 % |
Analog output: | 4 ... 20 mA |
Admissible impedance: | < 500 Ω |
Measuring frequency: | 500 Hz |
Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
Display: | LED: green - operation, yellow - output |
Voltage drop: | < 2,0 V |
Linearity error: | 1% |
Readiness delay: | < 300 ms |
Ambient temperature, operation: | 0 … +50 °C |
Ambient light immunity: | 5 kLx |
Insulation voltage endurance: | 500 V |
Protection class: | IP 67 |
Protection degree: | III, operation on protective low voltage |
Casing material: | Aluminium black anodized |
Material: | PMMA (Protection optics) |
Connection: | Connector, M12, 5-poled |
Connecting cable: | VK ... /5 |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.08 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
