Product
Di-soric
205532
LAD 4
Request a Quote
Image copyright: Di-soric
Di-soric 205532
LAD 4

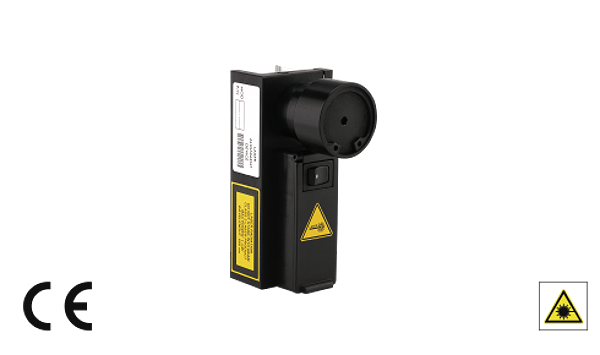

Laser alignment device
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Range up to 100 m. Obtains a fast and reliable optical alignment. Use is recommended for long distances or the use of deflection mirrors. Self-sufficient power supply
Downloads
Technical parameters
| Mounting: | quick fastening to the light curtain / -grid or the floor mounting column |
| Operating principle: | Laser alignment device |
| Size: | 117 x 48 x 80 mm (Dimensions) |
| Emitted light: | Red light laser, 650 nm, (for positioning) |
| Laser class: | 2 (IEC 60825-1) |
| Service voltage: | 3 V DC |
| Operating distance: | 100 m |
| Laser beam divergency: | < 0.5 mrad |
| Laser power: | 1000 µW |
| Suitable for: | all light curtains and light grids, Mounting columns FMC, deflection mirrors |
| Casing material: | plastics |
| Power supply: | 1.5 V alkaline batteries type AAA (2x) |
| Scope of delivery: | Multi-language instruction manual, 2 x 1.5 V alkaline batteries type AAA |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.39 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
