Product
Di-soric
204165
RS 40 M 6000 G8L-IBS
Request a Quote

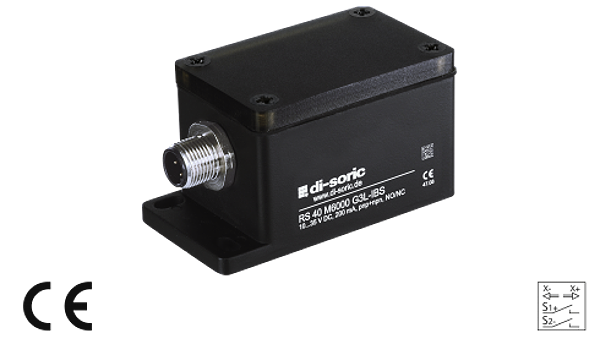

Image copyright: Di-soric
Di-soric 204165
RS 40 M 6000 G8L-IBS
Radar Sensor
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Non-contact detection of approaching and departing elements up to 6 m. Detection range and pulse streching adjustable. Mounting behind non-metallic materials possible. Switching outputs for detection of approximation and distance. Protection class IP 67 for outdoor use. Robust metal casing
Downloads
Technical parameters
| Operating principle: | Radar |
| Characteristics: | 2 directional switching outputs for detection of approximation and distance |
| Service voltage: | 10 ... 35 V DC |
| No-load current: | < 35 mA |
| Working distance: | 500 ... 6000 mm |
| Switching output: | Push pull (2x), 200 mA, NO/NC, switchable |
| Pulse stretching: | 0,1 ... 30 s adjustable |
| Voltage drop: | < 2,0 V |
| Switching frequency: | < 2 Hz |
| Working frequency: | 24,125 GHz, K-Band |
| Ambient temperature, operation: | -20 … +60 °C |
| Insulation voltage endurance: | 500 V |
| Protection class: | IP 67 |
| Casing material: | Die-cast zinc black lacquered finish |
| Connection: | Connector, M12, 4-poled |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.30 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
