Product
Di-soric
202729
KUS 50 M 100 PSK-TSL
Request a Quote
Image copyright: Di-soric

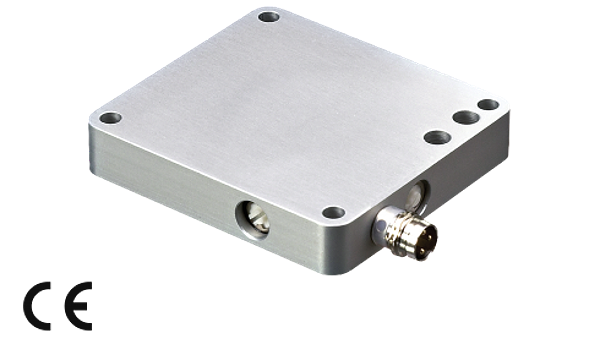

Di-soric 202729
KUS 50 M 100 PSK-TSL
Contact Sensor
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Detection through direct contact during ejection or free fall. For screws, studs, punched parts, springs and non-metallic parts. Adjustable suppression of multiple impulses. Up to 100 parts per second. Long life due to interchangeable baffle plate. Proper function even under most extreme conditions
Downloads
Technical parameters
| Characteristics: | up to 100 parts per second |
| Service voltage: | 10 ... 35 V DC |
| No-load current: | < 15 mA |
| Switching output: | pnp, 200 mA, NO |
| Sensitivity: | steelball Ø 3 mm from 20 mm height |
| Pulse stretching: | 0,1 ... 30 ms adjustable |
| Switching frequency: | 100 Hz |
| Response-/release time: | 0,30 ms |
| Ambient temperature, operation: | -25 … +70 °C |
| Protection class: | IP 67 |
| Casing material: | Aluminium |
| Connection: | Connector, M8, 3-poled |
| Connecting cable: | TK ... |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.06 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
