Product
Di-soric
201626
SH 30
Request a Quote
Image copyright: Di-soric

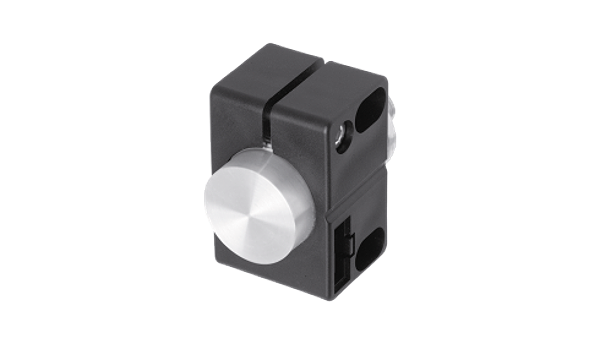

Di-soric 201626
SH 30
Sensor Holder
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
For cylindrical Sensors of Ø 30 mm or thread M30. Simple installation. Reduced mounting/downtimes thanks to one-piece construction. Sensor exchange without changing the clamp position. Oblong holes permit clamp adjustment
Downloads
Technical parameters
| Hole spacing: | 42 mm |
| Size: | 36 x 30 x 54 mm (Dimensions) 30 mm (Clamping diameter G) |
| Characteristics: | without limit stop |
| Casing material: | plastics (polyamide - PA 6 GK) |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.04 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
