Product
Di-soric
210903
WRB 120 P-SG-M6x30-2.5
Request a Quote
Image copyright: Di-soric

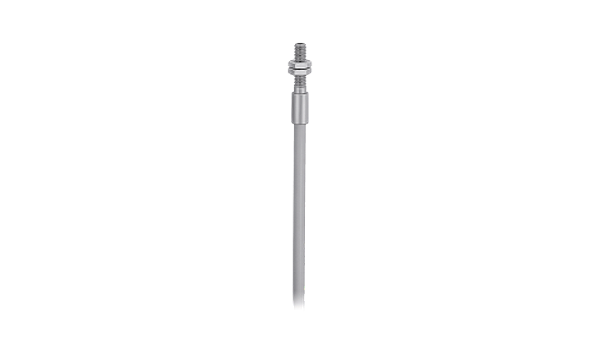

Di-soric 210903
WRB 120 P-SG-M6x30-2.5
Glass fiber optic
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
High-quality glass fibres. Resistant to high temperature. Robust, highly flexible
Downloads
Technical parameters
| Operating principle: | Diffuse reflective sensor |
| Design: | cylinder |
| Length: | 600 mm |
| Dimension fiber bundles: | Ø 2,5 mm |
| Opening angle: | 68° |
| Light outlet: | axial |
| Bending radius: | > 10 x tube-Ø |
| Temperature resistance: | + 80 °C |
| Protection class: | IP 67 |
| Suitable for: | FSB 10 M G1-B8 |
| Material: | Stainless steel (Sensor probe) glass fiber (Fiber) PVC (Cladding) |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.04 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
