208383

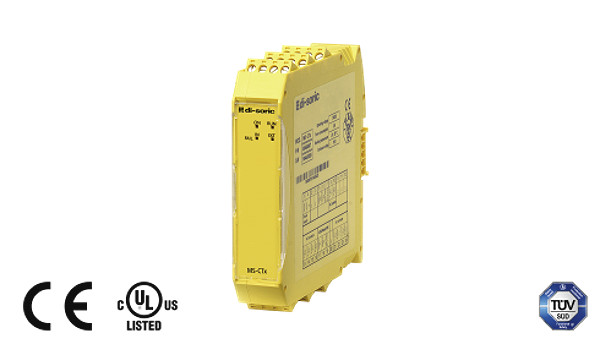

MS-CT1
MS - Expansion unit
Ideal solution for the interconnection of the safety functions of several machines on a single production line. Allowing the connection of remote expansions via the MS-SC bus. Up to 50 m for each connection (total distance up to 250 m!). Start or ending in the network. Connection to MS-1 master via MS-SC proprietary bus. MS-SC connector included
Characteristic parameters: | SIL 3 (IEC 61508), SILCL 3 (IEC 62061), PL e - Cat. 4 (EN ISO 13849-1) |
Mounting: | rail fastening according to EN 50022-35 standard |
Operating principle: | Interface module |
Size: | 99 x 22.5 x 114.5 mm (Dimensions) |
Service voltage: | 19,2 ... 28,8 V DC |
Display: | LED for output status |
Ambient temperature, operation: | -10 … +55 °C |
Protection class: | IP 20, (housing), IP 2X, (terminal blocks) |
Casing material: | polyamide (with locking latch mounting made of metal) |
Connection: | removable terminal blocks, interface with input or output, RJ-45 connector (1x), screw contacts |
Cable: | shielded RS485 cable, single connection max. 50 m, total length max. 250 m |
Communication: | 5-way high-speed bus 5.0 |
Scope of delivery: | multi-language installation sheet, MS - Connector MS-SC |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.22 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
