206722

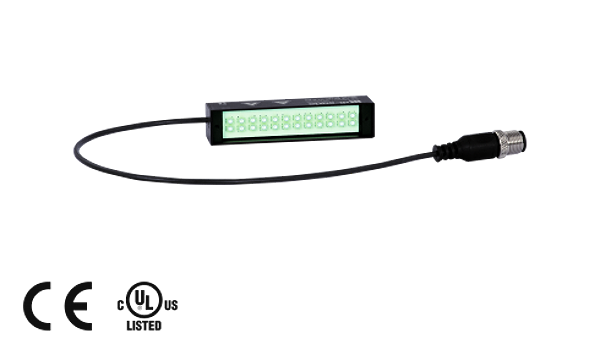

BE 1-A65/120-G2-K-BS
Barlight
Very compact design. Homogenous luminous field. Cable outlet at the front or back side usable. Universal mounting possibility. Metal casing. High efficiency. Robust metal casing
Design: | Barlight |
Illuminated area: | 65 mm |
Light colour: | Green, 525 nm |
Emission angle FWHM: | 120° |
Illumination intensity: | 2.5 klx (0.1 m), 630 Lux (0.2 m), 120 Lux (0.5 m) |
Service voltage: | 24 V DC (Supply Class 2) |
No-load current: | 80 mA |
Power: | 2,0 W (24 V DC) |
Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
Inverse polarity protection: | Yes |
Ambient temperature, operation: | 0 … +40 °C |
Protection class: | IP 20 |
Risk group (DIN EN 62471): | Free group |
Casing material: | Aluminium anodized |
Connection: | M12 |
Connecting cable: | VK ... |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.09 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
