204204

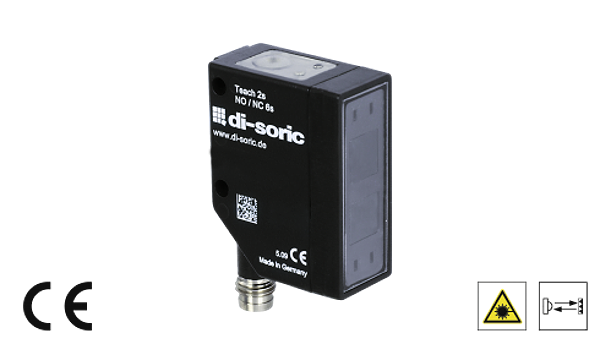

LRT 41 M 2 G3-T3
Laser Retroreflective Sensor
High operating distances with a small design. Plug, rotatable 270°. Dovetail groove for secure mounting. NO/NC changeover by teach button. Auto and two-point teach procedures. Auto-collimation principle. Visible red light with small light spot. Small metal casing design. Display for unstable function
Operating principle: | Retroreflective sensor |
Evaluation: | digital |
Size: | 41 x 31,5 x 16 mm (Dimensions) |
Design: | cuboid design |
Emitted light: | Red light laser, clocked |
Laser class: | 1 (IEC 60825-1) |
Operating distance: | 2000 mm |
Service voltage: | 10 ... 30 V DC |
No-load current: | < 40 mA |
Adjustment range: | 100 ... 2000 mm |
Sensitivity adjustment: | Teach key |
Referring reflector: | RL 13 x 17 mm, (included) |
Switching output: | Push pull, 200 mA, NO/NC, switchable |
Switching hysteresis: | < 10 % |
Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
Switching frequency: | 1000 Hz |
Reproducibility: | < 1 % |
Ambient temperature, operation: | 0 … +50 °C |
Ambient light immunity: | 50 kLx |
Insulation voltage endurance: | 500 V |
Protection class: | IP 67 |
Protection degree: | III, operation on protective low voltage |
Casing material: | Die-cast zinc black lacquered finish |
Material: | polymethyl methacrylate (Window) |
Connection: | Connector, M8, 3-poled |
Connecting cable: | TK ... |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.02 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
