Product
Di-soric
203680
AV4-UND/ODER
Request a Quote
Image copyright: Di-soric

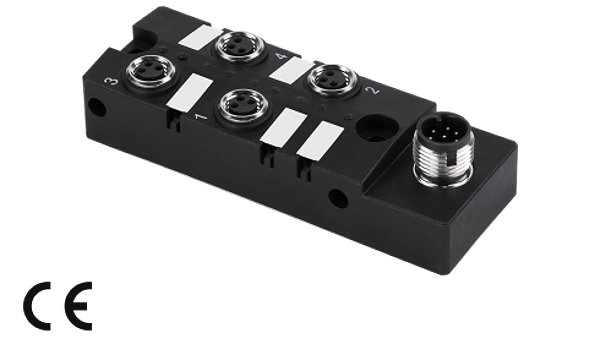

Di-soric 203680
AV4-UND/ODER
Connection Distributor
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Integrated switching function with quadruple AND/OR logic. 4 M8/3-pin sensor inputs. 1 M12/8-pole output. 4 LEDs for easy status display. Robust casing, IP 67 protection class
Downloads
Technical parameters
| Maximum rating: | ever 300 mA / Logic contakt (AND/OR) |
| Service voltage: | 10 ... 30 V DC |
| Switching output: | pnp (4x), pnp-OR 1x, pnp-AND 1x |
| Display: | LED yellow (Switching status), LED: green - Operation |
| Ambient temperature, operation: | -30 … +80 °C |
| Protection class: | IP 67, (at tightening torque 0,4 Nm) |
| Casing material: | plastics FPM (Viton) |
| Connection: | Connector, M12 x 1 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.07 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
