203657
WRB 220 S-4.5-2.5

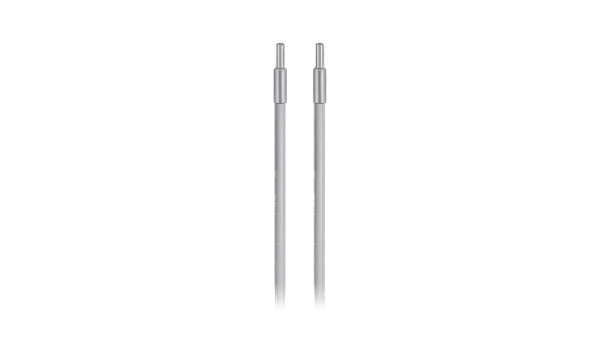

Glass fiber optic
High-quality glass fibres. Resistant to high temperature. Robust, highly flexible
Operating principle: | Through beam sensor |
Length: | 600 mm |
Opening angle: | 67° |
Light outlet: | axial |
Bending radius: | > 3 x tube-Ø |
Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
Temperature resistance: | -40 ... + 180 °C (short-term up to +250 °C) |
Protection class: | IP 67 |
Suitable for: | Colour Sensors |
Material: | Silicone-metal sleeve (Cladding) |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.18 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
