Product
Di-soric
203657
WRB 220 S-4.5-2.5
Request a Quote
Image copyright: Di-soric

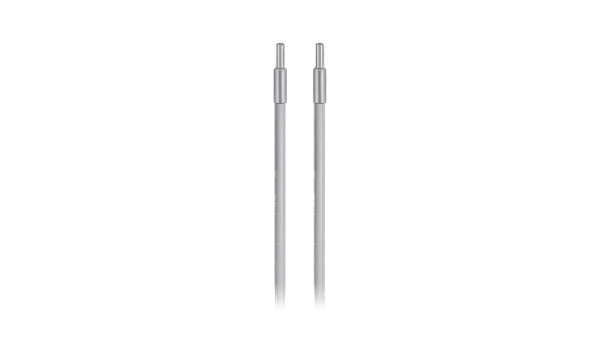

Di-soric 203657
WRB 220 S-4.5-2.5
Glass fiber optic
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
High-quality glass fibres. Resistant to high temperature. Robust, highly flexible
Downloads
Technical parameters
| Operating principle: | Through beam sensor |
| Length: | 600 mm |
| Opening angle: | 67° |
| Light outlet: | axial |
| Bending radius: | > 3 x tube-Ø |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Temperature resistance: | -40 ... + 180 °C (short-term up to +250 °C) |
| Protection class: | IP 67 |
| Suitable for: | Colour Sensors |
| Material: | Silicone-metal sleeve (Cladding) |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.18 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
