212691

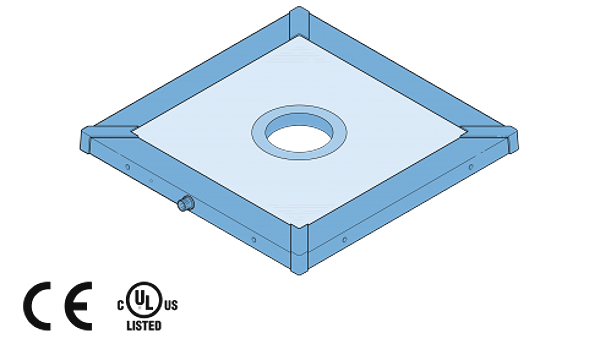

BEK-FL250/250-R50-G5T-IBS
Backlight
Extruded aluminium section bar. Modular design for individual sizes. Centrally located handling cutout. Constant level of light intensity over the entire voltage range. Homogenous luminous field. External trigger input. High efficiency
Design: | Backlight |
Illuminated area: | 250 x 250 mm |
Characteristics: | Trigger input, robust design, individual sizes available, Cutout for handling, round, Ø 50 mm, centrally located |
Light colour: | White, 5700 K |
Service voltage: | 24 V DC ± 5%, (Supply Class 2) |
No-load current: | 800 mA, (24 V DC) |
Trigger input low level: | < 2,9 V |
Trigger input high level: | > 3,3 V |
Power: | 19,0 W (24 V DC) |
Inverse polarity protection: | Yes |
Display: | LED: green - Operation |
On-delay time (Trig.): | < 0,010 ms |
Switch off delay (Trig.): | < 0,100 ms |
Ambient temperature, operation: | 0 … +40 °C |
Protection class: | IP 20 |
Protection degree: | III, operation on protective low voltage |
Risk group (DIN EN 62471): | Free group |
Casing material: | Aluminium black anodized |
Material: | PMMA (Protection optics) |
Connection: | Connector, M12, 3-poled |
Weight: | 2800 g |
Connecting cable: | VK ... |
Screw-in depth: | max. 6,5 mm |
Tightening torque: | max. 4 Nm |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 3.21 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
