Product
Di-soric
210902
FSB 10 M G1-B8
Request a Quote
Image copyright: Di-soric

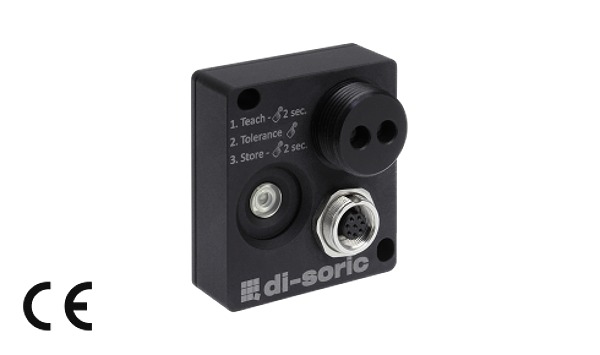

Di-soric 210902
FSB 10 M G1-B8
Colour Sensor
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Short response time. Adjustable colour tolerance. Distinction of smallest shades. High ambient light immunity. Integrated long-term stability. Status indication via LEDs. Key lock function. Compact design. Metal casing. High protection class. Intuitive teach-in with tolerance-tuning
Downloads
Technical parameters
| Size: | 41 x 46 x 14 mm (Dimensions) |
| Service voltage: | 10 ... 28 V DC |
| No-load current: | 80 mA, (24 V DC) |
| Control elements: | 1 |
| Light spot size: | Dependent on focus optic |
| Emitting light source: | white light LED, 420 ... 750 nm |
| Notee, powered by: | < 25 mm (WRB 120 P-SG-4.5-2.5), 10 ... 15 mm (VO-M12/10-4.5-2.5), 30 ... 60 mm (VO-M6/35-M6x30-2.5), 35 ... 60 mm (VO-M6/50-M6x30-2.5) |
| Fiber-optic connection: | M18 x 1 |
| Colour memory internal: | 1 |
| Number of sensing channels: | 1 |
| Colour channels of sensor: | 1 (Teachable via buttons) |
| Colour resolution: | DE Lab < 1 |
| Trigger input: | TRG, 24 V DC |
| Keylock: | Lock (+24 V DC) |
| Switching output: | Push pull, 200 mA, NO (pnp) / NC (npn) |
| Pulse stretching: | 0 ms or 50 ms |
| Display: | LED integrated in control button |
| Voltage drop: | < 2,0 V |
| Response time/Scanning frequency: | 0,5ms / 2000 Hz |
| Ambient temperature, operation: | -15 ... +55 °C |
| Tolerance ranges: | 5 Levels (3, 6, 9, 15, 30 ∆ELab), automatic tolerance in multiteach mode |
| Ambient light immunity: | 15 kLx |
| Ambient light compensation: | dynamic |
| Protection class: | IP 67 |
| Colour space mode: | L*a*b* (Non-self-shining objects) |
| Detection modes: | Check sphere (Check whether the measured colour is within a defined tolerance) |
| Operating mode: | - (Continuous) - (External triggering) |
| Casing material: | Aluminium anodized |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.11 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
