Product
Di-soric
208219
BE-A300-F1-K
Request a Quote
Image copyright: Di-soric

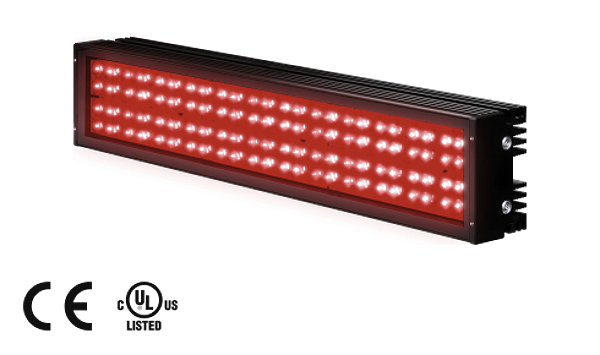

Di-soric 208219
BE-A300-F1-K
Barlight
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
High excess current factor. Flash mode operation for „freezed images“ and inspection of fast moving objects at extremely high light intensity. Long-life thanks to intelligent thermal management. Homogenous luminous field. High protection class. Robust metal casing. Universal mounting possibility. Scratch-proof protection window. Mounts und Optics available as an option
Downloads
Technical parameters
| Pulse power consumption (max): | 720 W |
| Pulse overload factor: | 12 |
| Pulse current capacity: | 24000 mA |
| Design: | Barlight |
| Illuminated area: | 46 x 295 mm |
| Characteristics: | Flashable by means of flash controller |
| Light colour: | Red, 625 nm |
| Emission angle FWHM: | 30° |
| Illumination intensity: | 100 klx (0.1 m / 100%) 310 klx (0.1 m / 400%) 515 klx (0.1 m / 800%) 62.0 klx (0.2 m / 100%) 178 klx (0.2 m / 400%) 324 klx (0.2 m / 800%) 24.0 klx (0.5 m / 100%) 66.0 klx (0.5 m / 400%) 115 klx (0.5 m / 800%) 7.5 klx (1.0 m / 100%) 20.0 klx (1.0 m / 400%) 38.0 klx (1.0 m / 800%) |
| Service voltage: | No constant voltage! |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Ambient temperature, operation: | 0 … +40 °C |
| Protection class: | IP 67 |
| Risk group (DIN EN 62471): | Free group |
| Casing material: | Aluminium black anodized |
| Material: | PUR (Cable) PMMA, hardcoated (Protection optics) |
| Connection: | Cable, 2,5 m, flying leads, Use only with flash equipment! |
| Weight: | 1100 g |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 1.38 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
