207469

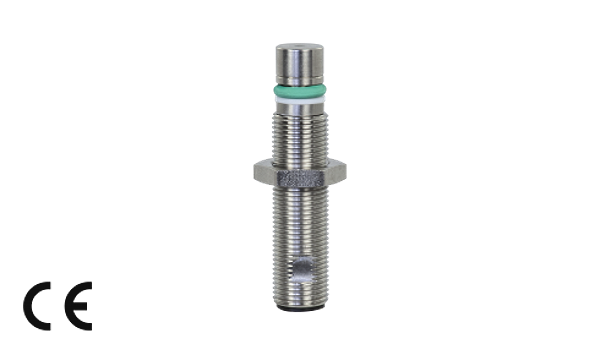

DCC 12 VHD 2 PS-B3-56-4
Inductive Proximity Switch
High-pressure resistant version up to 500 bar. High-temperature resistant up to 100 °C permanent temperature. Housing and sensing face made of stainless steel. Integrated amplifier. Short-circuit protection. Starting pulse suppression
Operating principle: | Inductive |
Evaluation: | digital |
Size: | M12 x 1 (thread) |
Design: | screw |
Mounting: | flush |
Characteristics: | up to 500 bar, high-pressure resistant |
Operating distance: | 2 mm |
Standardized measuring plate: | 10 x 10 x 1 mm |
Service voltage: | 10 ... 30 V DC |
No-load current: | < 10 mA |
Switching output: | pnp, 200 mA, NO |
Switching hysteresis: | 15 % |
Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
Voltage drop: | < 2,4 V |
Switching frequency: | 400 Hz |
Ambient temperature, operation: | -25 … +100 °C |
Insulation voltage endurance: | 500 V |
Protection class: | IP 68, IP 69K |
Casing material: | stainless steel V2A (1.4301 / AISI 304) |
Connection: | Connector, M12 |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.03 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
