Product
Di-soric
206859
BEK-K50/50-G2TI-IBS
Request a Quote
Image copyright: Di-soric

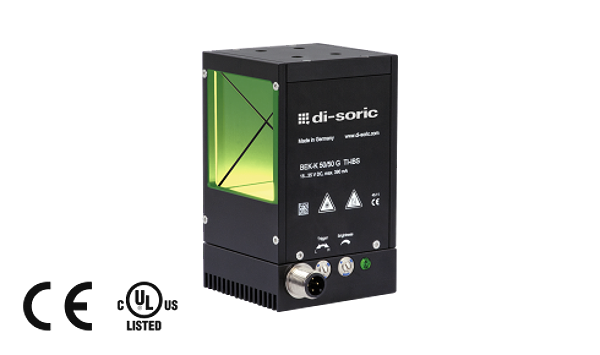

Di-soric 206859
BEK-K50/50-G2TI-IBS
Coaxial light
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Integrated current regulation. Constant level of light intensity over the entire voltage range. Homogenous illumination. External trigger input. High efficiency. Light intensity can be adjusted. Robust metal casing
Downloads
Technical parameters
| Illuminated area: | 50 x 50 mm |
| Light colour: | Green, 525 nm |
| Emission angle FWHM: | 120° |
| Illumination intensity: | 14.2 klx (30 mm), 6.8 klx (50 mm), 23.6 klx (5 mm) |
| Service voltage: | 18 ... 35 V DC (Supply Class 2) |
| No-load current: | 300 mA, (24 V DC) |
| Trigger input low level: | 0 … < 2,8 V |
| Trigger input high level: | > 3,3 … 35 V |
| Power: | 7,2 W (24 V DC) |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Inverse polarity protection: | Yes |
| Display: | LED: green - Operation |
| Ambient temperature, operation: | 0 … +40 °C |
| Protection class: | IP 20 |
| Protection degree: | III, operation on protective low voltage |
| Risk group (DIN EN 62471): | Free group |
| Casing material: | Aluminium black anodized |
| Material: | Mineral glass (Window) |
| Connection: | Connector, M12, 3-poled |
| Connecting cable: | VK ... |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.61 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
