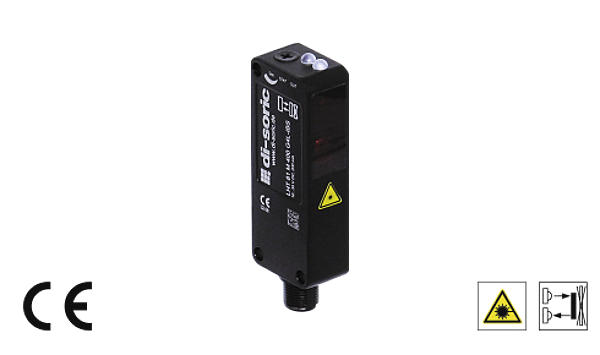

Di-soric 205171
LHT 81 M 300 G4L-IBS
Laser Diffuse Sensor with Background Suppression
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Mechanical background suppression. Vibration-save 6-turn adjustment for finest adjustment. Red light laser, with small laser spot. Push-pull pnp + npn. High resolution, switching accuracy, switching frequency. Functional reserve indicator. Robust metal casing
Downloads
Technical parameters
| Operating principle: | Diffuse reflective sensor |
| Evaluation: | digital |
| Size: | 76 x 30 x 18 mm (Dimensions) |
| Design: | cuboid design |
| Emitted light: | Red light laser, 650 nm, clocked |
| Laser class: | 1 (IEC 60825-1) |
| Service voltage: | 10 ... 35 V DC |
| No-load current: | < 30 mA |
| background suppression: | yes |
| Operating distance: | 40 ... 300 mm (300 ... 600 mm as diffuse reflective sensor) |
| Sensitivity adjustment: | 6-turn adjustment |
| Switching output: | Push pull, 200 mA, exclusive OR, NO/NC |
| Switching hysteresis: | < 1 % |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Switching frequency: | 1000 Hz |
| Ambient temperature, operation: | -20 … +60 °C |
| Ambient light immunity: | 5 kLx |
| Insulation voltage endurance: | 500 V |
| Protection class: | IP 67 |
| Protection degree: | III, operation on protective low voltage |
| Casing material: | Die-cast zinc black lacquered finish |
| Material: | polycarbonate (Window) |
| Connection: | Connector, M12, 4-poled |
| Connecting cable: | VK ... |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.10 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
