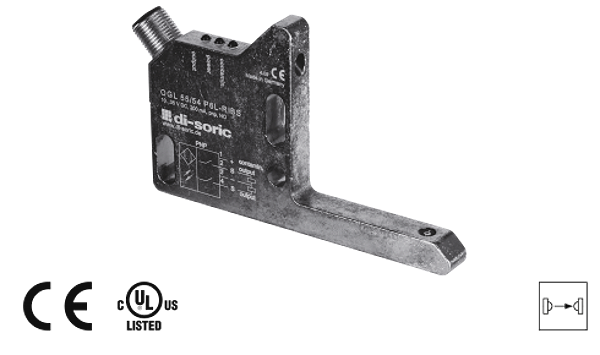

Di-soric 204195
OGL 55/54 P6L-RIBS
High Performance Angled Light Barrier
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Intelligent contamination output with LED. High functional reserve. Extremely dirt-resistant. Advanced PE-contact. Optical axis approachable in x-, y- and z-direction. All-purpose mounting. Robust metal casing
Downloads
Technical parameters
| Operating principle: | Optical |
| Evaluation: | digital |
| Size: | 65 x 106 x 10 mm (Dimensions) |
| Design: | Angle |
| Branch length inside: | 55/54 mm |
| Characteristics: | High transmit power and dirt penetration |
| Emitted light: | Red, 660 nm, clocked |
| Service voltage: | 10 ... 35 V DC (Supply Class 2) |
| No-load current: | < 45 mA |
| Operating distance: | 60 mm (optical axis) |
| Sensitivity adjustment: | no setting elements |
| Switching output: | pnp, 200 mA, NO |
| Contamination output: | pnp, 200 mA |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Voltage drop: | < 2,0 V |
| Switching frequency: | 200 Hz |
| Ambient temperature, operation: | -10 … +60 °C |
| Ambient light immunity: | 5 kLx |
| Insulation voltage endurance: | 500 V |
| Protection class: | IP 67 |
| Protection degree: | III, operation on protective low voltage |
| Casing material: | Die-cast zinc |
| Connection: | Connector, M12, 4-poled |
| Connecting cable: | VK ... |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.11 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
