Di-soric
204016
OR 6-18 KR 2000 P3K-BSL
Request a Quote

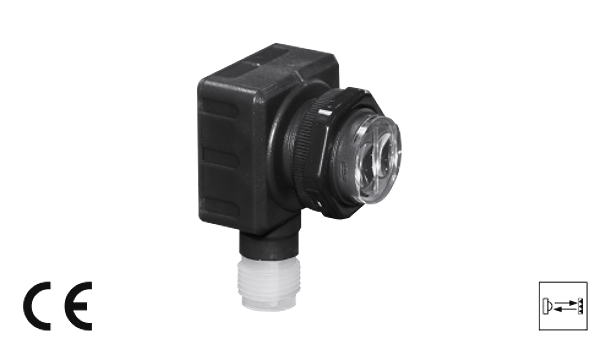

Image copyright: Di-soric
Di-soric 204016
OR 6-18 KR 2000 P3K-BSL
Retroreflective Sensor
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Reflector included. Plastic housing. Connector M12. Infrared light. Sensitivity adjustable. LED indicatior for output state
Downloads
Technical parameters
| Operating principle: | Retroreflective sensor |
| Evaluation: | digital |
| Size: | 28 x 28 x 15.3 mm (Dimensions) M18 x 1 (thread) |
| Design: | cuboid design |
| Emitted light: | Infrared, 880 nm, clocked |
| Operating distance: | 2000 mm, 3000 mm, 6000 mm |
| Service voltage: | 10 ... 30 V DC |
| No-load current: | < 30 mA |
| Notee, powered by: | 2000 mm (R 46) 3000 mm (R 84) 6000 mm (R 100x100) |
| Sensitivity adjustment: | potentiometer |
| Referring reflector: | R 46, (included) |
| Switching output: | pnp, 100 mA, NO/NC, programmable |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Switching frequency: | 333 Hz |
| Response-/release time: | 1,5 ms / 1,5 ms |
| Ambient temperature, operation: | -25 … +55 °C |
| Ambient light immunity: | 3 kLx, clocked light, 10 kLx, Sunlight |
| Protection class: | IP 66 |
| Protection degree: | III, operation on protective low voltage |
| Casing material: | ABS |
| Material: | polymethyl methacrylate (Window) |
| Connection: | Connector, M12, 4-poled |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.04 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
