Product
Di-soric
203615
WRB 120 S-SG-4.5-2.5
Request a Quote

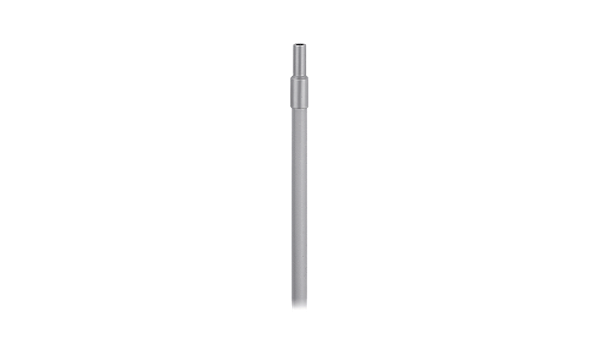

Image copyright: Di-soric
Di-soric 203615
WRB 120 S-SG-4.5-2.5
Glass fiber optic
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
To operate colour sensors with fibre optic connection. High-quality glass fibres. Arangement of fibres statistically mixed. Resistant to high temperature. Robust, highly flexible
Downloads
Technical parameters
| Operating principle: | Diffuse reflective sensor |
| Design: | screw |
| Length: | 600 mm, (fiber optic cable) |
| Dimension fiber bundles: | Ø 2,5 mm |
| Opening angle: | 67° |
| Light outlet: | axial |
| Mounting hole: | Ø 4,5 mm |
| single fiber: | Ø 0,05 mm |
| Bending radius: | > 3 x tube-Ø |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Temperature resistance: | -40 ... + 180 °C (short-term up to +250 °C) |
| Protection class: | IP 67 |
| Suitable for: | Colour Sensors, Amplifier for glass fiber optics |
| Material: | Stainless steel (Sensor probe) glass fiber (Fiber) Silicone-metal sleeve (Cladding) |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.08 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
