202833

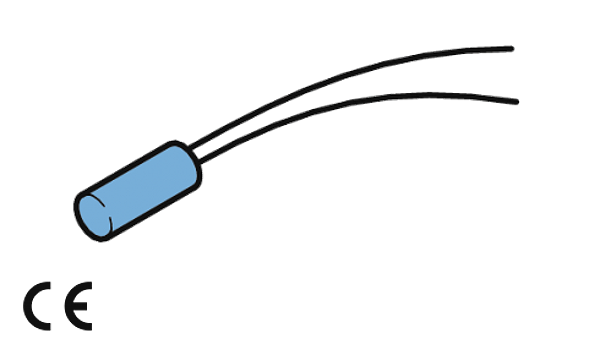

DCC 4.0 V 0.8 NAMUR-K
Inductive Proximity Switch
Versions in accordance with NAMUR. Service voltage 5 .. 30 V DC. Output current < 1 mA with energized proximity switch. Output current > 2,2 mA with de-energized proximity switch. Cable, highly flexible. Starting pulse suppression. LED
Operating principle: | Inductive |
Evaluation: | digital |
Size: | Ø 4,0 mm (Diameter) |
Design: | cylinder |
Mounting: | flush |
Operating distance: | 0,8 mm |
Standardized measuring plate: | 4 x 4 x 1 mm |
Service voltage: | 7,7 ... 9 V DC |
Switching output: | Namur, < 1 mA / > 2,2 mA |
Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
Switching frequency: | 10000 Hz |
Ambient temperature, operation: | -25 … +70 °C |
Insulation voltage endurance: | 500 V |
Protection class: | IP 67 |
Casing material: | stainless steel |
Connection: | Cable, 1,0 m |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.01 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
