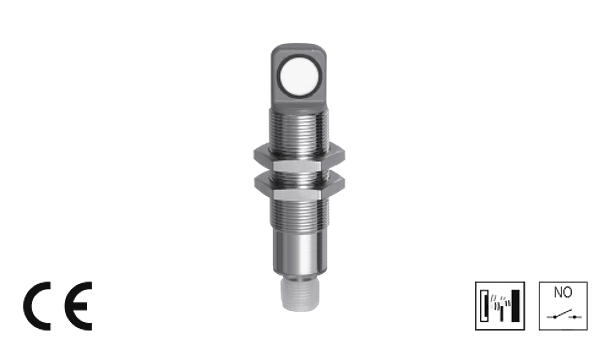

Image copyright: Di-soric
Di-soric 202696
USCRTI18MR200FPSK-BSL
Ultrasonic barrier
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Ultrasonic barrier. Sound outlet radial. Scanning range adjustable via teach input. Insensitive to dirt and ambient noise due to a large functional reserve. Small blind zone. Metal casing. Small design. High protection class
Downloads
Technical parameters
| Operating principle: | Ultrasonic barrier |
| Evaluation: | digital |
| Size: | M18 x 1 (thread) |
| Design: | screw |
| Standardized measuring plate: | 20 x 20 mm |
| Service voltage: | 20 ... 30 V DC |
| No-load current: | < 20 mA |
| Operating distance: | 0 ... 200 mm |
| Adjustment range: | 120 ... 220 mm |
| Sensitivity adjustment: | Remote teach |
| Switching output: | pnp, 150 mA, NO |
| Switching hysteresis: | 2 mm |
| Sound frequency: | 400 kHz |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Switching frequency: | 10 Hz |
| Response-/release time: | 50 ms |
| Ambient temperature, operation: | -25 … +70 °C |
| Insulation voltage endurance: | 500 V |
| Protection class: | IP 67 |
| Casing material: | brass nickel plated |
| Material: | PBTP (Crastin) (Transducer enclosure) epoxy resin (Transducer surface) |
| Connection: | Connector, M12, 4-poled |
Logistic parameters
| ECCN: | |
| Country of Origin: | DE |
| EAN: | |
| Weight: | 0.07 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
