Product
Di-soric
202600
US 60 K 5000 PSO-TSSL
Request a Quote

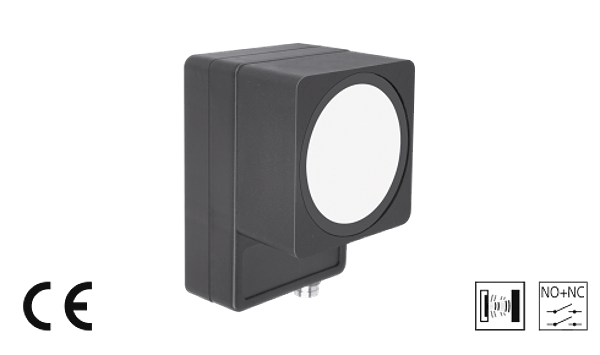

Image copyright: Di-soric
Di-soric 202600
US 60 K 5000 PSO-TSSL
Ultrasonic Sensor
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Robust casing. Compact design. Scanning range adjustable. Insensitive to dirt. Insensitive to ambient noise. Scanning does not depend on surface. Switching output. High resolution. Piezo-ceramic composite transducer
Downloads
Technical parameters
| Operating principle: | Ultrasonic sensor |
| Evaluation: | digital |
| Size: | 60 x 41 x 38 mm (Dimensions) |
| Design: | cuboid design |
| Service voltage: | 15 ... 30 V DC |
| No-load current: | 65 mA |
| Operating distance: | 400 ... 5000 mm |
| Resolution: | 0,1 % / Sn max. |
| Switching output: | pnp, 100 mA, NO/NC |
| Switching hysteresis: | 80 mm |
| Sound frequency: | 80 kHz |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Switching frequency: | 2 Hz |
| Accuracy: | < 1 % / Sn max. |
| Response-/release time: | 700 ms / 140 ms (50% Sn max.) |
| Ambient temperature, operation: | -20 … +50 °C |
| Temperature drift: | 1 % (-20 ... +50°C) |
| Insulation voltage endurance: | 500 V |
| Protection class: | IP 67 |
| Casing material: | polyamide |
| Connection: | Connector, M8, 4-poled |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.14 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
