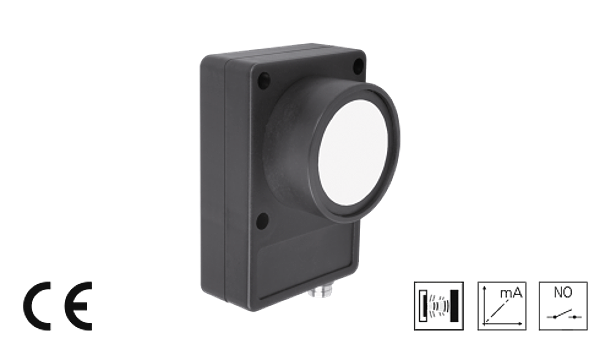

Image copyright: Di-soric
Di-soric 202592
US 60 K 2500 PSI-TSSL
Ultrasonic Sensor
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Robust casing. Compact design. Scanning range adjustable. Insensitive to dirt. Insensitive to ambient noise. Scanning does not depend on surface. Switching output and analog output. High follow-up speed. High resolution. Piezo-ceramic composite transducer
Downloads
Technical parameters
| Operating principle: | Ultrasonic sensor |
| Evaluation: | digital, analog |
| Size: | 60 x 41 x 33 mm (Dimensions) |
| Design: | cuboid design |
| Service voltage: | 15 ... 30 V DC |
| No-load current: | 80 mA |
| Operating distance: | 250 ... 2500 mm |
| Resolution: | 0,1 % / Sn max. |
| Switching output: | pnp, 100 mA, NO + analog |
| Switching hysteresis: | 40 mm |
| Analog output: | 4 ... 20 mA |
| Measuring time: | 400 ms (95% Sn max.) |
| Sound frequency: | 120 kHz |
| Ripple: | 15 mV |
| Linearity analog output: | < 0,5 % / Sn max. |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Switching frequency: | 3 Hz |
| Accuracy: | < 1 % / Sn max. |
| Response-/release time: | 200 ms / 120 ms (50% Sn max.) |
| Ambient temperature, operation: | -20 … +50 °C |
| Temperature drift: | 1 % (-20 ... +50°C) |
| Load resistance: | < 400 Ω |
| Insulation voltage endurance: | 500 V |
| Protection class: | IP 67 |
| Casing material: | polyamide |
| Connection: | Connector, M8, 4-poled |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.12 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
