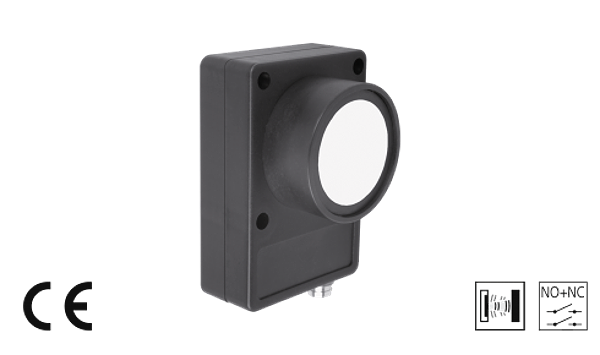

Image copyright: Di-soric
Di-soric 202566
US 60 K 2500 PSO-TSSL
Ultrasonic Sensor
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Robust casing. Compact design. Scanning range adjustable. Insensitive to dirt. Insensitive to ambient noise. Scanning does not depend on surface. Switching output. High resolution. Piezo-ceramic composite transducer
Downloads
Technical parameters
| Operating principle: | Ultrasonic sensor |
| Evaluation: | digital |
| Size: | 60 x 41 x 33 mm (Dimensions) |
| Design: | cuboid design |
| Service voltage: | 15 ... 30 V DC |
| No-load current: | < 60 mA |
| Operating distance: | 250 ... 2500 mm |
| Resolution: | 0,1 % / Sn max. |
| Switching output: | npn, 100 mA, NO/NC |
| Switching hysteresis: | 40 mm |
| Sound frequency: | 120 kHz |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Switching frequency: | 3 Hz |
| Accuracy: | < 1 % / Sn max. |
| Response-/release time: | 200 ms / 120 ms (50% Sn max.) |
| Ambient temperature, operation: | -20 … +50 °C |
| Temperature drift: | 1 % (-20 ... +50°C) |
| Insulation voltage endurance: | 500 V |
| Protection class: | IP 67 |
| Casing material: | polyamide |
| Connection: | Connector, M8, 4-poled |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.12 kg |
