Product
Di-soric
200977
LGL 121 P3K-TSSL
Request a Quote

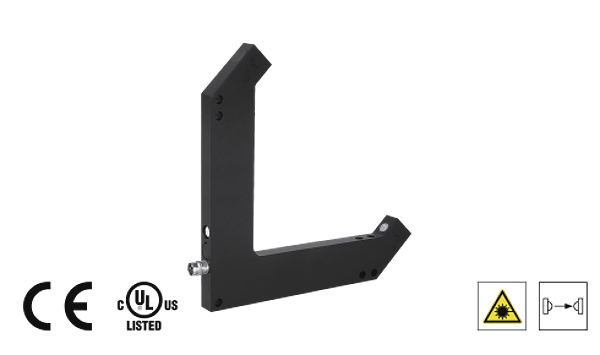

Image copyright: Di-soric
Di-soric 200977
LGL 121 P3K-TSSL
Laser Angled Light Barrier
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Very high resolution. Optical axis approachable in x-, y- and z-direction. Visible laser spot. High operating frequency. Light/dark switching. Laser class 1. Bright ring LED. 5-year warranty
Downloads
Technical parameters
| Operating principle: | Optical |
| Evaluation: | digital |
| Size: | 146 x 146 x 12 mm (Dimensions) |
| Design: | Angle |
| Branch length inside: | 120/120 mm |
| Emitted light: | Red light laser, 650 nm, clocked |
| Laser class: | 1 (IEC 60825-1) |
| Service voltage: | 10 ... 35 V DC (Supply Class 2) |
| No-load current: | < 30 mA |
| Operating distance: | 142 mm (optical axis) |
| Resolution: | 0,05 mm |
| Sensitivity adjustment: | potentiometer |
| Switching output: | pnp, 200 mA, NO/NC, switchable |
| Switching hysteresis: | < 20 µm |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Voltage drop: | < 2,8 V |
| Switching frequency: | 3000 Hz |
| Reproducibility: | 10 µm |
| Laser power: | < 100 µW |
| Ambient temperature, operation: | +5 … +45 °C |
| Ambient light immunity: | 100 kLx |
| Insulation voltage endurance: | 250 V |
| Protection class: | IP 67 |
| Protection degree: | III, operation on protective low voltage |
| Casing material: | Aluminium black anodized |
| Connection: | Connector, M8, 3-poled |
| Connecting cable: | TK ... |
| Mountable side by side: | Yes |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.12 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
