Product
Escha
8071800
AL-FHM12SUA12-0,5/M16
Request a Quote
Image copyright: Escha

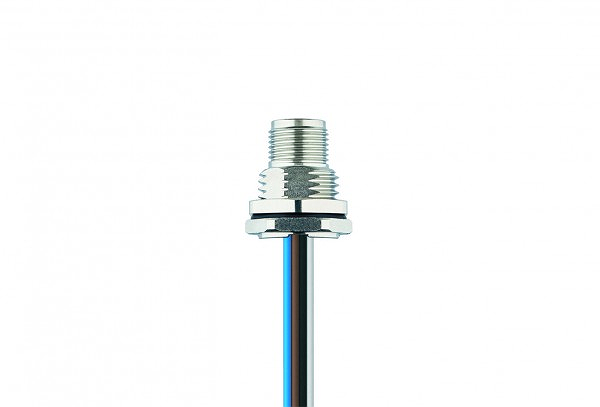

Escha 8071800
AL-FHM12SUA12-0,5/M16
Receptacle, M12 male, straight, 12 poles, A-coded, back wall-mounting, wire contact
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Downloads
Technical parameters
| Fastening thread: | M16x1.5 |
| Wrench size of fastening nut: | A/F19 |
| Connector: | male, straight, M12 |
| Number of pins: | 12 |
| Pin assignment: | 1 BN, 2 BU, 3 WH, 4 GN, 5 PK, 6 YE, 7 BK, 8 GY, 9 RD, 10 VT, 11 GYPK, 12 RDBU |
| Coding: | A |
| Rated voltage: | 30V |
| Current load (at 40°C): | 1.5 |
| Insulation resistance (Ω): | ≥10 8 |
| Wire colors: | BN, BU, WH, GN, PK, YE, BK, GY, RD, VT, GYPK, RDBU |
| Wire insulation material: | PVC |
| Ambient temperature product: | -30°C...+90°C |
| Contact material: | Metal, CuZn, gold-plated |
| Contact-carrier material: | Plastic, PA GF, BK |
| Receptacle housing material: | Metal, CuZn, nickel-plated |
| Material of external sealing: | NBR |
| Connecting type: | Wire contact |
| Standards: | IEC 61076-2-101 |
| Degree of protection (mounted): | IP65, IP67, IP68 |
| Mounting direction: | Back wall-mounting (incl. Fixing screw) |
| Wire length: | 0.5 |
| Mechanical life-cycle: | >100 mating cycles |
| Receptacle housing material, conecting-plug: | Metal, CuZn, nickel-plated |
| Degree of pollution: | 3 |
Logistic parameters
| ECCN: | |
| Country of Origin: | Deutschland |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
