Product
Escha
8063655
FB-WWASH4-2/P01
Request a Quote

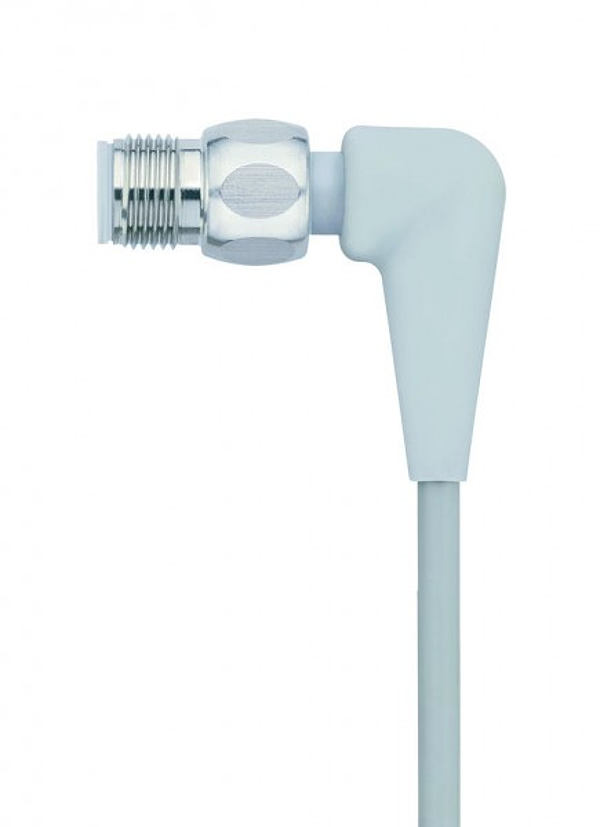

Image copyright: Escha
Escha 8063655
FB-WWASH4-2/P01
M12 male, angled, Food & Beverage, 4 poles
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
PVC-cable for measurement and control-, and sensor technology. Suitable for applications in dry areas on packaging machines, assembly- and conveyor technology. High flexibility with unstressed movement (conditional drag-chain application possible). Predestined for applications in food- and beverage industry.
Downloads
Technical parameters
| Connector: | male, angled, M12 |
| Number of pins: | 4 |
| Pin assignment: | 1 BN, 2 WH, 3 BU, 4 BK |
| Coding: | A |
| Wire insulation material: | PVC |
| Resistance (mΩ): | 5 |
| Conductor structure: | 19 x 0.15 mm |
| Bending radius (fixed): | 5 x Ø-cable |
| Ambient temperature product: | -40°C...+105°C |
| Temperature range (repeated): | 0°C...+80°C |
| Grip body material: | Plastic, PP, GY |
| Contact-carrier material: | Plastic, PP, GY |
| Coupling nut material: | Stainless steel, V4A |
| Standards: | IEC 61076-2-101 |
| Degree of protection (mounted): | IP65, IP67, IP68, IP69 |
| Mechanical life-cycle: | >100 mating cycles |
| Cable end assembly: | open cable end |
| Degree of pollution: | 3 |
Logistic parameters
| ECCN: | |
| Country of Origin: | Deutschland |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
