Article image 8055758

Escha 8055758

VA22-24.3-0,4-DA22-24.3-2/P01

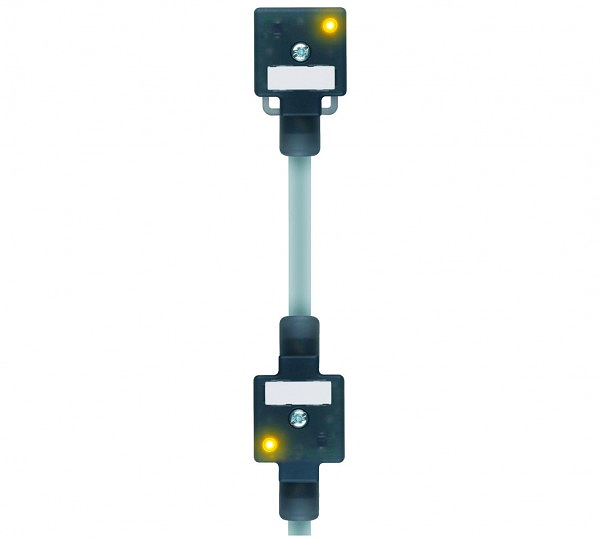

Double-valve-connector, housing style A, 2+PE bridged, sensor-/actuator cable, suppressor diode

17.37 €

Quantity

Item condition: New, factory packaged
Expected lead time: 4-5 weeks
Packaging unit: 10 pc
Minimum order: 10 pc
Warranty: 12 months

Description

PVC-cable for measurement and control-, and sensor technology. Suitable for applications in dry areas on packaging machines, assembly- and conveyor technology. High flexibility with unstressed movement (conditional drag-chain application possible). Predestined for applications in food- and beverage industry. P01-cables meet the UL and CSA (UL1729/2464; cULus) requirements.

Downloads

Technical parameters

Outer diameter of jacket: 6,40 +/- 0,2 mm
Housing style: A
Jacket color: GY, similar RAL7040
Number of pins: 2+PE, PE bridged
Wire insulation material: PVC
Rated voltage: 24V AC/DC
Conductor structure: 24 x 0,20 mm
Insulation resistance (Ω): ≥10 8
Temperature range (fixed): -25°C...+80°C
Temperature range (repeated): 0°C...+80°C
Protection circuit: Suppressor diode
Special features: seawater resistant, recyclable, LABS free, RoHs compliant, acid- and alkali resistant, ozone resistant, UV resistant
Contact-carrier material: Plastic, PA, BK
Grip body material: Plastic, TPU, BK, translucent
Sealing (female) material: IP65, IP67, IP68
Degree of protection (mounted): >100 mating cycles

Logistic parameters

ECCN:
Country of Origin: Deutschland
EAN:
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
