Product
Di-soric
213065
US 18 M 1500 IU-B4
Request a Quote

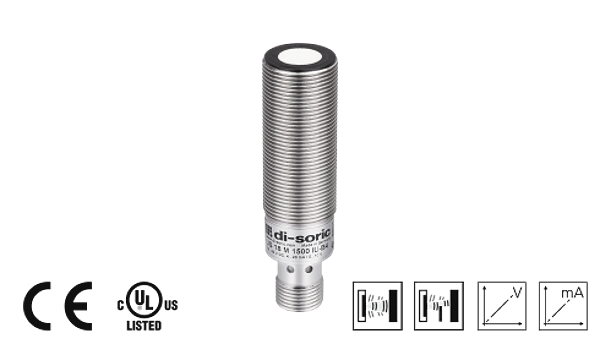

Image copyright: Di-soric
Di-soric 213065
US 18 M 1500 IU-B4
Ultrasonic sensor
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
IO-Link. As a ultrasonic sensor or -barrier configurable. Scanning range adjustable. Analog output 4 .. 20 mA / 0 .. 10 V, depending on load. Insensitive to dirt. Insensitive to ambient noise. Scanning does not depend on surface. High frequency of measuring sequence. High resolution
Downloads
Technical parameters
| Operating principle: | Ultrasonic sensor, Ultrasonic barrier |
| Evaluation: | analog, digital (via IO-Link) |
| Size: | M18 x 1 (thread) |
| Design: | screw |
| Sending axis: | axial |
| Characteristics: | IO-Link |
| Nominal switching distance (Sn): | 1500 mm |
| Standardized measuring plate: | 100 x 100 mm |
| Service voltage: | 18 ... 30 V DC |
| No-load current: | < 35 mA, (24 V DC) |
| Adjustment range: | 150 ... 1500 mm, Teach in |
| Sensitivity adjustment: | Remote teach |
| Switching output: | Push pull, 150 mA |
| Switching hysteresis: | 6 mm, via IO-Link adjustable |
| Analog output: | 0 ... 10 V, 4 ... 20 mA |
| Interface: | IO-Link, V1.1, COM2 (38,4kBd), Smart Sensor Profile |
| Display: | LED: green - operation, yellow - output |
| Voltage drop: | < 2,5 V |
| Switching frequency: | > 5 Hz … < 10 Hz |
| Readiness delay: | < 300 ms |
| Ambient temperature, operation: | -25 … +70 °C |
| Temperature drift: | 0.2 %/K (uncompensated) |
| Load resistance: | > 10 KΩ (0 ... 10 V) / < 400 Ω (4 ... 20 mA) |
| Insulation voltage endurance: | 500 V |
| Protection class: | IP 67 |
| Protection degree: | III, operation on protective low voltage |
| Casing material: | brass nickel plated |
| Connection: | Connector, M12 x 1, 4-poled |
| Scope of delivery: | 2 x M18 nuts |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
