212924

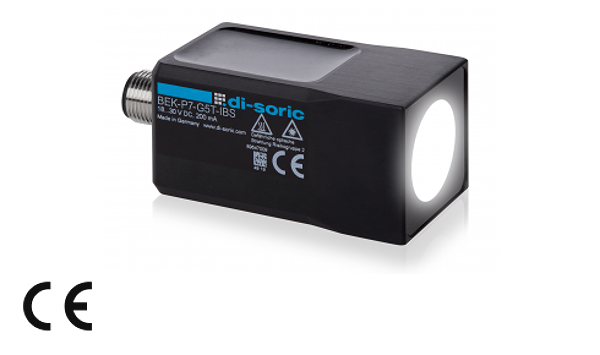

BEK-P7-G5T-IBS
Spotlight
Constant level of light intensity over the entire voltage range. Homogenous luminous field. External trigger input. Internal control of power output. High efficiency. Low levels of heat produced. Robust metal casing
Size: | 30 x 32 x 60 mm (Dimensions) |
Characteristics: | Internal control of power output, Trigger input |
Light colour: | White, 6500 K |
Emission angle FWHM: | 7° |
Illumination intensity: | 25.0 klx (0.5 m), 6000 Lux (1.0 m), 2700 Lux (1.5 m) |
Service voltage: | 18 ... 30 V DC (Supply Class 2) |
No-load current: | 145 mA, (24 V DC) |
Light outlet: | axial |
Trigger input low level: | 0 … < 2,8 V |
Trigger input high level: | > 3,4 … 30 V |
Power: | 3,5 W (18…30 V DC) |
Inverse polarity protection: | Yes |
Display: | LED: green - Operation |
Ambient temperature, operation: | 0 … +40 °C |
Protection class: | IP 67 |
Protection degree: | III, operation on protective low voltage |
Risk group (DIN EN 62471): | Risk group 2 |
Casing material: | Aluminium black anodized |
Material: | polymethyl methacrylate (Window) |
Connection: | Connector, M12, 4-poled |
Weight: | 110 g |
Connecting cable: | VK ... |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.15 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
