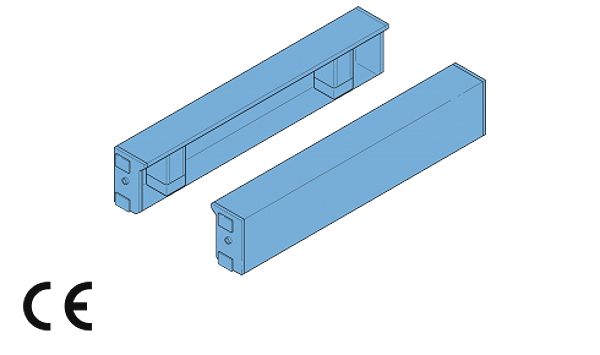

Di-soric 212733
MZ-L2XP
Muting arms
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Muting easily done by hardware wiring to SLM4. Pre-wired muting arms for SLM4 for quick start-up. Integratable, height-adjustable muting arms in mounting groove from SLM4. Simple connector, connection of the muting sensors directly at the SLM4 safety light grid
Downloads
Technical parameters
| Protective function: | Access control |
| Operating principle: | Through beam sensor |
| Number of beams: | 5 |
| Characteristics: | for irregular loads |
| Emitted light: | Infrared |
| Service voltage: | 19,2 ... 28,8 V DC |
| Operating distance: | 0 ... 3,5 m |
| Switching output: | pnp, 100 mA, NO |
| Ambient temperature, operation: | -30 … +55 °C |
| Scope of delivery: | quick installation guide, Fixing material, 2 muting arms |
| Muting sensors adjustable in: | height, rotational position |
| Execution of the muting arms: | L (2 muting arms), 2 muting sensors, Parallel or cross muting |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 2.25 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
