Di-soric 208372
FMC-SB4

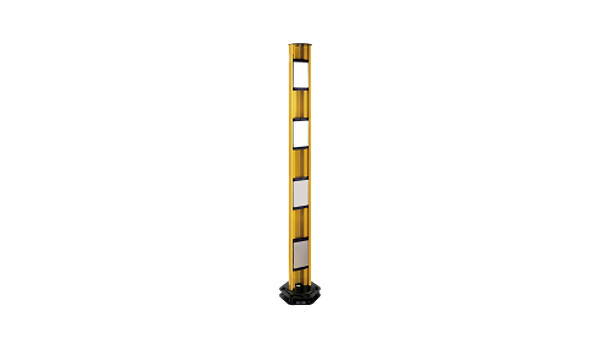

Column with deflection mirror
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
For the realization of circumferential protections up to 4 sides. Not more than one safety light curtain / -grid necessary. Special models equipped with a protective anti-fragmentation film on the mirrors available on request. Robust column made by aluminium extrusion poles. With adjustable angular orientation. Optical power reduction factor 15% for each mirror. Built-in spirit level for a correct positioning of the vertical axis
Downloads
Technical parameters
| Total height (A): | 1330 mm |
| Operating principle: | Mounting column with deflection mirror |
| Number: | 4 (deflection mirrors) |
| Characteristics: | built-in spirit level |
| Ambient temperature, operation: | -10 … +50 °C (mirrors) |
| Suitable for: | 4 beam security light grids |
| Casing material: | aluminium extrusion poles, epoxy powder coated, plastics |
| Version: | freely adjustable |
| Scope of delivery: | assembly instruction, Fixing material |
| Optical power reduction factor: | 15 % |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.00 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
