Product
Di-soric
207279
DCCR 44 K 20 PSOL-IBS
Request a Quote

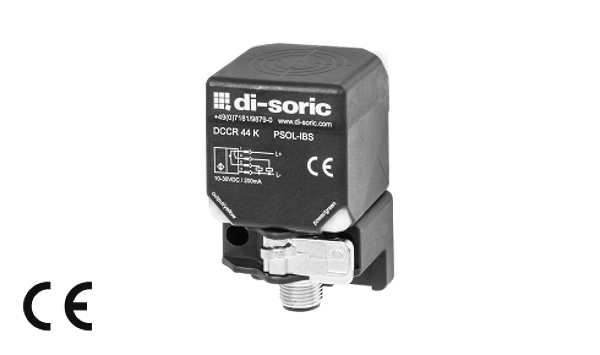

Image copyright: Di-soric
Di-soric 207279
DCCR 44 K 20 PSOL-IBS
Inductive Proximity Switch
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Sensor probe pivotable as well as rotatable. Quick mounting bracket. Integrated amplifier. Protection against short-circuit and reverse polarity. Starting pulse suppression. LEDs for service voltage and output status. 4-way LED indicator for 360° visibility
Downloads
Technical parameters
| Operating principle: | Inductive |
| Evaluation: | digital |
| Size: | 40 x 40 x 67 mm (Dimensions) |
| Design: | cuboid design |
| Mounting: | flush |
| Operating distance: | 20 mm |
| Maximum rating: | short-circuit-proof, polarity-safe |
| Standardized measuring plate: | 60 x 60 x 1 mm |
| Service voltage: | 10 ... 30 V DC |
| No-load current: | < 20 mA |
| Switching output: | pnp, 200 mA, exclusive OR |
| Switching hysteresis: | 5 % |
| LED indicator: | yes |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Voltage drop: | < 2,0 V |
| Switching frequency: | 0 ... 150 Hz |
| Ambient temperature, operation: | -25 … +85 °C |
| Protection class: | IP 69K |
| Protection degree: | II |
| Casing material: | PA |
| Connection: | Connector, M12 x 1 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.15 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
