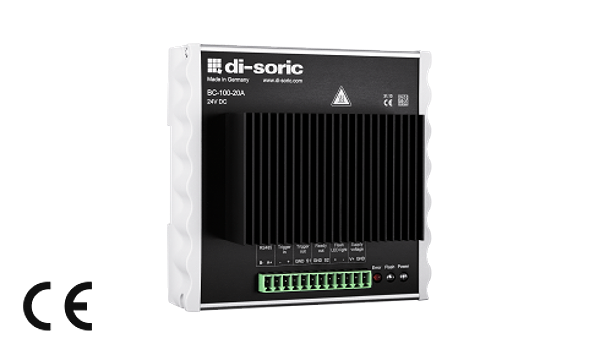

Di-soric 207116
BC-100-20A
Flash controller for flashable lighting
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Controlled flash mode for LED-Lighting. Simple and fast setup with RS485/USB/PC. Trigger input for external control. Adjustable delay. Max. pulse current 20 A. Pulse times can be adjusted between 10 µs .. 50 ms. Strobe function up to 10 kHz. Constant current of up to 1.8 A. Stand by output. Trigger output for camera systems and peripheral devices
Downloads
Technical parameters
| Service voltage: | 24 V DC ± 1V |
| Trigger input: | 5 ... 24 V DC, potential-free, optocouplers |
| Interface: | RS 485 |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Inverse polarity protection: | In pairs by terminal group |
| Display: | LED: green - operation, yellow - flash, red - error |
| Short-circuit protection: | In pairs by terminal group |
| Ambient temperature, operation: | 0 … +40 °C |
| Protection class: | IP 40 |
| Protection degree: | III, operation on protective low voltage |
| Casing material: | Aluminium, PA 6.6 FR anodized |
| Connection: | Terminal Blocks, 12-poled |
| Trigger output: | push-pull, pnp (12 V DC), npn (30 V DC), configurable, < 150 mA |
| Ready output: | push-pull, pnp (12 V DC), npn (30 V DC), configurable, < 150 mA |
| Average / Peak power consumption: | < 2,5 A / 6,0 A |
| LED constant current (configurable): | 0,1 ... 1,8 A |
| LED pulse current (configurable): | 0,1 ... 20,0 A |
| Pulse duration (configurable): | 0,01 ... 50 ms |
| Pulse cycle time (configurable): | 100 µs ... 60 s |
| Pulse delay (configurable): | > 50 µs (0...2 A) / > 5 µs (2...20 A) |
| Input power: | < 55 W (24 V DC) |
| Number of channels: | 1 |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.58 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
