Di-soric
206345
BEE-F50/50V-G1TI-IBS
Request a Quote
Image copyright: Di-soric

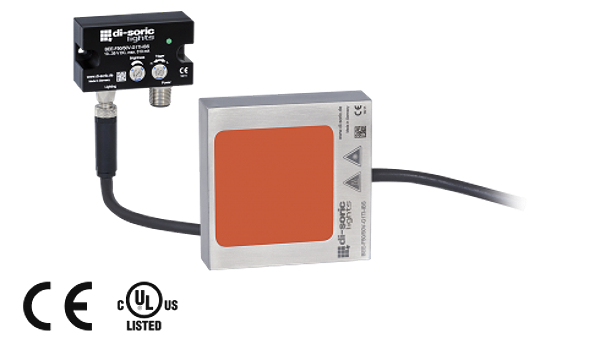

Di-soric 206345
BEE-F50/50V-G1TI-IBS
Backlight
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Robust stainless steel casing for use in the pharma, beverage and food industry. Constant level of light intensity over the entire voltage range. Homogenous luminous field. High efficiency. External trigger input. Light intensity can be adjusted
Downloads
Technical parameters
| Design: | Backlight |
| Illuminated area: | 50 x 50 mm |
| Characteristics: | External control of power output |
| Light colour: | Red, 625 nm |
| Service voltage: | 10 ... 35 V DC (Supply Class 2) |
| No-load current: | < 310 mA, (10 V DC) |
| Trigger input low level: | 0 … < 2,8 V |
| Trigger input high level: | > 3,3 … 35 V |
| Power: | 3,4 W |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Display: | LED: green - Operation |
| On-delay time (Trig.): | 0,344 ms |
| Switch off delay (Trig.): | 0,125 ms |
| Ambient temperature, operation: | 0 … +50 °C |
| Protection class: | IP 69K, IP 67, (electronic control) |
| Protection degree: | III, operation on protective low voltage |
| Risk group (DIN EN 62471): | Free group |
| Casing material: | stainless steel V4A, (1.4404 / AISI 316L - 1.4571 / AISI 316Ti) |
| Connection: | Cable, 5,0 m, M8, 4-poled, (Lighting), M12, (electronic control) |
| Connecting cable: | VK ... |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.67 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
