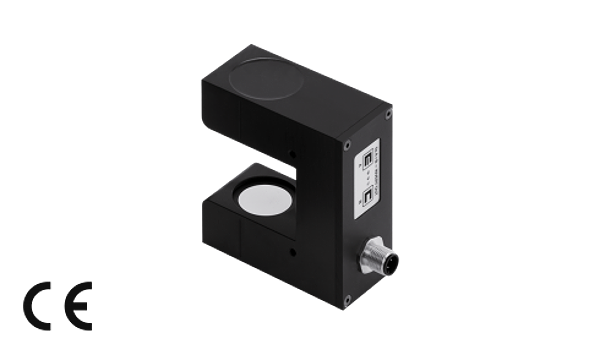

Di-soric 205001
USGT 40/13 U-B4
Ultrasonic Fork Sensor
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Large linearized analog range. Very high repeatability. Web edge control also with transparent materials. Insensitive to dirt
Downloads
Technical parameters
| Operating principle: | Ultrasonic through beam sensor |
| Evaluation: | analog |
| Design: | fork |
| Fork width/measuring range: | 40/13 mm |
| Service voltage: | 8 ... 30 V DC |
| No-load current: | 35 mA |
| Sensitivity adjustment: | Teach key |
| Analog output: | 10 ... 0 V, Load / < 10000 Ω |
| Ripple: | 10 % |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Switching frequency: | 285 Hz |
| Reproducibility: | 0,1 mm |
| Ambient temperature, operation: | 0 … +60 °C |
| Insulation voltage endurance: | 500 V |
| Protection class: | IP 67 |
| Casing material: | Aluminium black anodized |
| Connection: | Connector, M12, 4-poled |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.41 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
