204461
OLVK61P3FK-TSSL/5000HZ

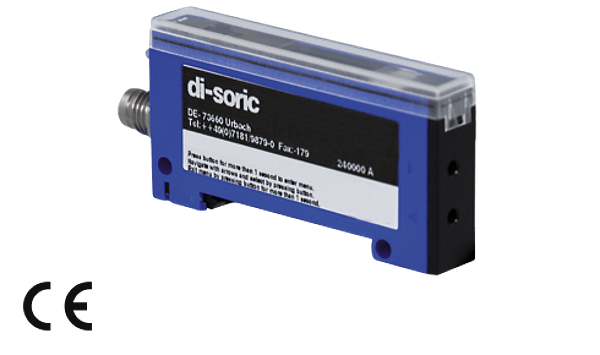

Amplifier for plastic fiber optics
DIN-rail mounting and lateral mounting holes. Mountable side by side, 10 mm mounting grid. 12-turn metal potentiometer with illuminated readout. Scanning range up to 200 mm, operating range up to 1500 mm. Version with functional reserve output. Light/dark switching switchable
Amplifier for: | Plastic fiber optics 2x2,2 mm |
Evaluation: | digital |
Emitted light: | Red, 680 nm, clocked |
Service voltage: | 10 ... 30 V DC (Supply Class 2) |
No-load current: | < 15 mA |
Sensitivity adjustment: | potentiometer |
Switching output: | pnp, 200 mA, NO/NC, switchable |
Switching hysteresis: | < 10 % |
Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
Voltage drop: | < 2,0 V |
Switching frequency: | 5000 Hz |
Response-/release time: | 0,10 ms / 0,10 ms |
Ambient temperature, operation: | -25 … +55 °C |
Temperature drift: | 0,2 %/K |
Ambient light immunity: | 10 kLx |
Insulation voltage endurance: | 500 V |
Protection class: | IP 64 |
Casing material: | plastics (PBT) |
Connection: | Connector, M8, 4-poled |
ECCN: | |
Country of Origin: | DE |
EAN: | |
Weight: | 0.00 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
