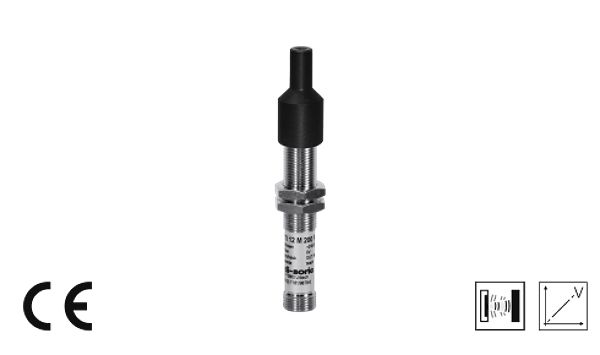

Article image 203920

Di-soric 203920

USTI12MFB150A-IBSL

Ultrasonic Sensor

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Analog output: increasing/decreasing, teachable. Small design. Scanning does not depend on surface. Narrow detection beam / small blind zone

Downloads

Technical parameters

Operating principle: Ultrasonic sensor
Evaluation: analog
Size: M12 x 1 (thread)
Design: screw
Service voltage: 15 ... 30 V DC
No-load current: < 30 mA
Operating distance: 20 ... 150 mm
Sensitivity adjustment: Remote teach
Analog output: 0 ... 10 V
Sound frequency: 400 kHz
Ripple: 10 %
Linearity analog output: < 1 % / Sn max.
Shock-/vibration load: 10 ... 55 Hz / 1,0 mm / 30 g
Ambient temperature, operation: -25 … +70 °C
Load resistance: < 1000 Ω
Insulation voltage endurance: 500 V
Protection class: IP 65
Casing material: brass nickel plated
Connection: Connector, M12, 4-poled

Logistic parameters

ECCN:
Country of Origin: DE
EAN:
Weight: 0.05 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
