Product
Di-soric
203749
OEP 12 V 50000 G1-IBSL
Request a Quote

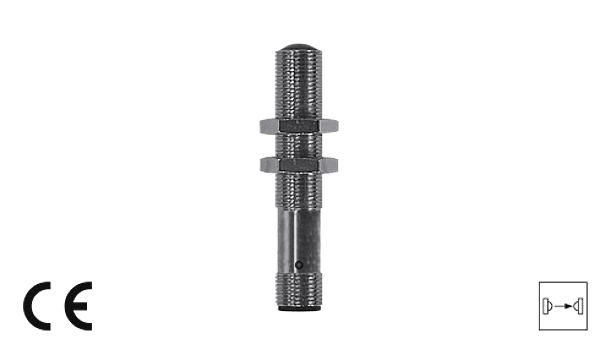

Image copyright: Di-soric
Di-soric 203749
OEP 12 V 50000 G1-IBSL
High Performance Photoelectric Sensor, Receiver
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
High operating distance up to 50 m. Integrated amplifier electronics. Transistor output with push-pull. High functional reserve. Extremely dirt-resistant. Easy adjustment. Different designs to be combinated. High protection class. Compact design
Downloads
Technical parameters
| Operating principle: | Through beam sensors, receiver, switching output |
| Evaluation: | digital |
| Size: | M12 x 1 (thread) |
| Design: | screw |
| Characteristics: | High transmit power and dirt penetration |
| Service voltage: | 10 ... 35 V DC |
| No-load current: | < 40 mA |
| Operating distance: | 0 ... 50000 mm dependent on the transmitter |
| Sensitivity adjustment: | no setting elements |
| Switching output: | Push pull, 200 mA, NC (pnp) / NO (npn) |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Switching frequency: | 20 Hz |
| Ambient temperature, operation: | -20 … +60 °C |
| Ambient light immunity: | 15 kLx, Sunlight, 2 kLx, clocked light |
| Protection class: | IP 67, IP 68, IP 69K |
| Protection degree: | III, operation on protective low voltage |
| Casing material: | stainless steel V2A (1.4301 / AISI 304) |
| Connection: | Connector, M12, 3-poled |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.03 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
