Di-soric
203048
LLRV 51 M 500 P3K-IBS
Request a Quote

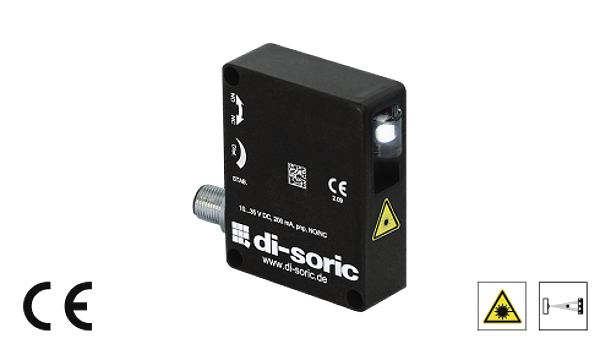

Image copyright: Di-soric
Di-soric 203048
LLRV 51 M 500 P3K-IBS
Laser Line Retroreflective Sensor
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Fan-shaped laser beam with auto-collimation principle. Detection of smallest parts within the entire active zone. Red light laser. 4-turn potentiometer. Robust metal casing
Downloads
Technical parameters
| Operating principle: | Retroreflective sensor |
| Evaluation: | digital |
| Size: | 50 x 40 x 15 mm (Dimensions) |
| Design: | cuboid design |
| Emitted light: | Red light laser, 670 nm, clocked |
| Laser class: | 1 (IEC 60825-1) |
| Operating distance: | 50 … 500 mm |
| Service voltage: | 10 ... 35 V DC |
| No-load current: | < 30 mA |
| Resolution: | 25 ... 100 % covering of laser line |
| Sensitivity adjustment: | potentiometer |
| Switching output: | pnp, 200 mA, NO/NC, switchable |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Switching frequency: | 750 Hz |
| Ambient temperature, operation: | +5 … +50 °C |
| Ambient light immunity: | 15 kLx |
| Insulation voltage endurance: | 500 V |
| Protection class: | IP 67 |
| Protection degree: | III, operation on protective low voltage |
| Casing material: | Die-cast zinc black lacquered finish |
| Material: | polymethyl methacrylate (Window) |
| Connection: | Connector, M12, 3-poled |
| Connecting cable: | VK ... |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.11 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
