203027

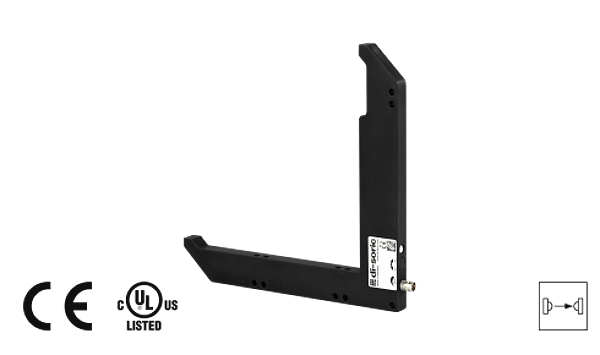

OGLP 150 P3K-TSSL
High Performance Angled Light Barrier
High functional reserve. Extremely dirt-resistant. Collimator optics. Optical axis approachable in x-, y- and z-direction. Integrated electronic module. Sensitivity adjustable. Light/dark switching. Metal connector. Bright ring LED. 5-year warranty
Operating principle: | Optical |
Evaluation: | digital |
Size: | 180 x 180 x 12 mm (Dimensions) |
Design: | Angle |
Branch length inside: | 150/150 mm |
Characteristics: | High transmit power and dirt penetration |
Emitted light: | Infrared, 880 nm, clocked |
Service voltage: | 10 ... 35 V DC (Supply Class 2) |
No-load current: | < 40 mA |
Operating distance: | 200 mm (optical axis) |
Resolution: | Ø 3,0 mm |
Sensitivity adjustment: | potentiometer |
Switching output: | pnp, 200 mA, NO/NC, switchable |
Switching hysteresis: | < 0,25 mm |
Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
Voltage drop: | < 2,8 V |
Switching frequency: | 2000 Hz |
Reproducibility: | 0,06 mm |
Ambient temperature, operation: | -10 … +60 °C |
Ambient light immunity: | 50 kLx |
Insulation voltage endurance: | 500 V |
Protection class: | IP 67 |
Protection degree: | III, operation on protective low voltage |
Casing material: | Aluminium black anodized |
Connection: | Connector, M8, 3-poled |
Connecting cable: | TK ... |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.23 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
