Product
Di-soric
202925
ORSD 20 P2K-IBS
Request a Quote
Image copyright: Di-soric

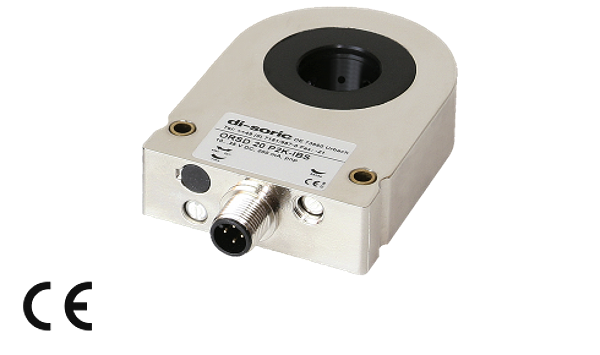

Di-soric 202925
ORSD 20 P2K-IBS
Ring Light Barrier
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Compact design. High resolution. Static/dynamic switchable. Pulse stretching adjustable. Detection of metallic and non-metallic parts
Downloads
Technical parameters
| Operating principle: | Dynamic/static switchable, Optical |
| Inside diameter: | 20,6 mm |
| Emitted light: | Infrared, clocked |
| Maximum rating: | 200 mA |
| Service voltage: | 10 ... 35 V DC |
| No-load current: | < 30 mA |
| Resolution: | Ø 1,5 mm |
| Sensitivity adjustment: | potentiometer |
| Switching output: | pnp, 200 mA, NO |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Pulse stretching: | 0,1 ... 150 ms adjustable |
| Voltage drop: | < 2,0 V |
| Response-/release time: | 0,10 ms |
| Ambient temperature, operation: | 0 … +60 °C |
| Ambient light immunity: | 5 kLx |
| Insulation voltage endurance: | 500 V |
| Protection class: | IP 67 |
| Protection degree: | III, operation on protective low voltage |
| Casing material: | plastics PA chromium-plated |
| Connection: | Connector, M12, 3-poled |
| Connecting cable: | VK ... |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.12 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
