202853
TKHM-Z/TSM-Z/I
Multifunctional Adapter
Suitable for all kind of standard sensors. Compact construction. Simple and fast implementation of other functions. High temperature resistance. LED indication of status and output signal

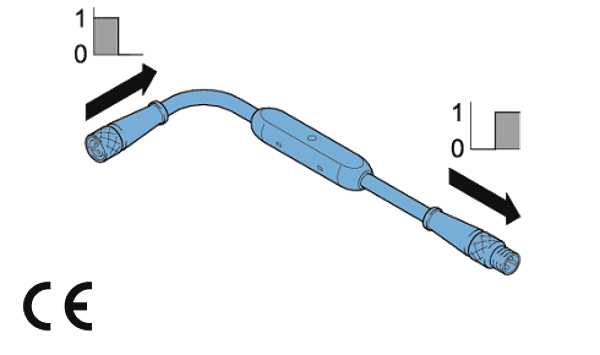

Operating principle: | pnp signal inversion |
Size: | M8 x 1 (thread) |
Characteristics: | metal coupling ring |
Maximum rating: | 200 mA, short-circuit-proof |
Service voltage: | 10 ... 35 V DC |
No-load current: | < 20 mA |
Function selection: | pnp |
Switching output: | pnp |
Switching frequency: | 3500 Hz |
Ambient temperature, operation: | -20 … +70 °C |
Protection class: | IP 67 |
Protection degree: | III, operation on protective low voltage |
Suitable for: | d |
Casing material: | plastics |
Connection: | Connector, M8, 3-poled |
Connection 2: | Socket, M8, 3-poled |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.02 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
