202588

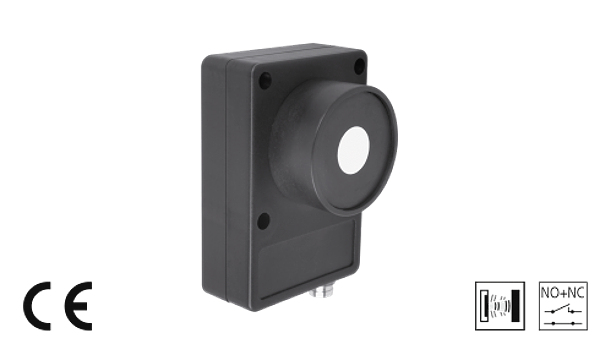

US 60 K 1000 PSO-TSSL
Ultrasonic Sensor
Robust casing. Compact design. Scanning range adjustable. Insensitive to dirt. Insensitive to ambient noise. Scanning does not depend on surface. Switching output. High resolution. Piezo-ceramic composite transducer
Operating principle: | Ultrasonic sensor |
Evaluation: | digital |
Size: | 60 x 41 x 18 mm (Dimensions) |
Design: | cuboid design |
Service voltage: | 15 ... 30 V DC |
No-load current: | < 60 mA |
Operating distance: | 135 ... 1000 mm |
Resolution: | 0,1 % / Sn max. |
Switching output: | pnp, 100 mA, NO/NC |
Switching hysteresis: | 25 mm |
Sound frequency: | 180 kHz |
Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
Switching frequency: | 5 Hz |
Accuracy: | < 1 % / Sn max. |
Response-/release time: | 130 ms / 90 ms (50% Sn max.) |
Ambient temperature, operation: | -20 … +50 °C |
Temperature drift: | 1 % (-20 ... +50°C) |
Insulation voltage endurance: | 500 V |
Protection class: | IP 67 |
Casing material: | polyamide |
Connection: | Connector, M8, 4-poled |
ECCN: | |
Country of Origin: | |
EAN: | |
Weight: | 0.19 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
