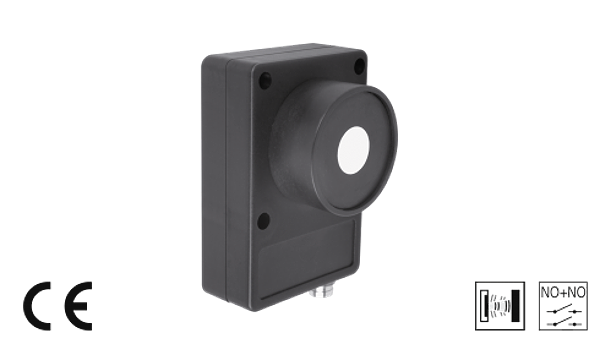

Image copyright: Di-soric
Di-soric 202587
US 60 K 1000 PSS-TSSL
Ultrasonic Sensor
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Compact design. Robust casing. Scanning range adjustable. Insensitive to dirt. Insensitive to ambient noise. Scanning does not depend on surface. Switching output. High resolution. Piezo-ceramic composite transducer
Downloads
Technical parameters
| Operating principle: | Ultrasonic sensor |
| Evaluation: | digital |
| Size: | 60 x 41 x 18 mm (Dimensions) |
| Design: | cuboid design |
| Service voltage: | 15 ... 30 V DC |
| No-load current: | < 60 mA |
| Operating distance: | 135 ... 1000 mm |
| Resolution: | 0,1 % / Sn max. |
| Switching output: | pnp, 100 mA, NO (2x) |
| Switching hysteresis: | 25 mm |
| Sound frequency: | 180 kHz |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Switching frequency: | 5 Hz |
| Accuracy: | < 1 % / Sn max. |
| Response-/release time: | 130 ms / 90 ms (50% Sn max.) |
| Ambient temperature, operation: | -20 … +50 °C |
| Temperature drift: | 1 % (-20 ... +50°C) |
| Insulation voltage endurance: | 500 V |
| Protection class: | IP 67 |
| Casing material: | polyamide |
| Connection: | Connector, M8, 4-poled |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.11 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
