Product
Di-soric
202582
US 60 K 500 AI-I-TSSL
Request a Quote

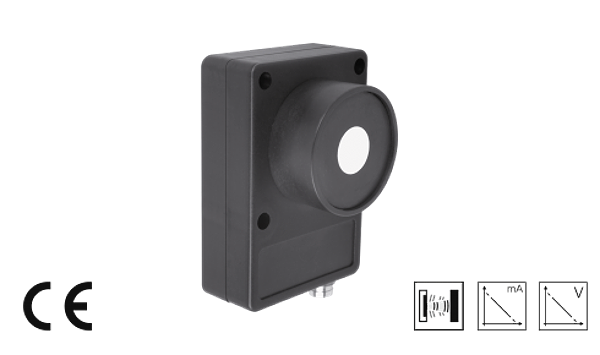

Image copyright: Di-soric
Di-soric 202582
US 60 K 500 AI-I-TSSL
Ultrasonic Sensor
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Robust casing. Compact design. Zero and full scale adjustable. Scanning range adjustable. Insensitive to dirt. Insensitive to ambient noise. Scanning does not depend on surface. Analog output. High follow-up speed. High resolution. Piezo-ceramic composite transducer
Downloads
Technical parameters
| Operating principle: | Ultrasonic sensor |
| Evaluation: | analog |
| Size: | 60 x 41 x 18 mm (Dimensions) |
| Design: | cuboid design |
| Service voltage: | 15 ... 30 V DC |
| No-load current: | 80 mA |
| Operating distance: | 80 ... 800 mm |
| Resolution: | 0,2 % / Sn max. |
| Switching output: | Analog output (2x) |
| Analog output: | 10 ... 0 V, 20 ... 4 mA |
| Measuring time: | 60 ms (95% Sn max.) |
| Sound frequency: | 180 kHz |
| Ripple: | 60 mV |
| Linearity analog output: | < 0,5 % / Sn max. |
| Shock-/vibration load: | 10 ... 55 Hz / 1,0 mm / 30 g |
| Accuracy: | < 1 % / Sn max. |
| Ambient temperature, operation: | -20 … +50 °C |
| Temperature drift: | 1 % (-20 ... +50°C) |
| Load resistance: | > 10000 Ω / < 400 Ω |
| Insulation voltage endurance: | 500 V |
| Protection class: | IP 67 |
| Casing material: | polyamide |
| Connection: | Connector, M8, 4-poled |
Logistic parameters
| ECCN: | |
| Country of Origin: | |
| EAN: | |
| Weight: | 0.11 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
